TotGuard Rider Max Adult Adventure Electric Mountain Bike
Specifications
- Item：TotGuard 27.5 inch
- Product Dimensions(L*H)：68.5*40.5(inch)
- E Bike Weight：49.6lbs
- Max Load：300lbs
- Max Speed：21.6mph
- Charger：Input: 100-240V AC 50/60HZ 2A Output: DC 54.6V 2A
- Pure Electric Mode：30-35miles
- Pure Pedal-Assist Mode：55-65miles
- Max Angle of Climb：30 degrees
- Charging Time：Around 5 hours
- Tire Pressure：45-60 PSI
- Frame Material：Aluminum Alloy
- Battery：48V 10.4Ah
- Dashboard：LCD Display
- Drive Type：Rear Drive
- Brake Type：Mechanic Disc Brakes
- Chain set：24-34-42 Tooth
- Gears：21S
- Chain：KMC Z7 RB
- Motor：High speed 500W motor
- Tire Size：27.5inch*1.95inch
30 Days Return
If you are unhappy with your purchase, as long as you contact us within 30 days from the receipt of the item, we will process your return/exchange request. Any request after 30 days will not be honored. Please make sure to contact us by email at first.
1 Year Warranty
The Totguard electric bike with 1 year warranty service for the frame, battery, motor and other main replaceable parts. If you have any questions or need warranty support, please contact us at service@totguardebike.com.
What's in the Box?
- TotGuard 27.5 inch*1
- Front wheel*1
- Saddle assembly*1
- Charger*1
- Battery*1
- Pedals*2
- Front wheel QR(Quick Realease）*1
- Rear relector*1
- Front reflector*1
- Tool*2
- Product Manual*1
Mountain Bike/Commuter Bike
Enjoy the Ultimate Riding Experience！

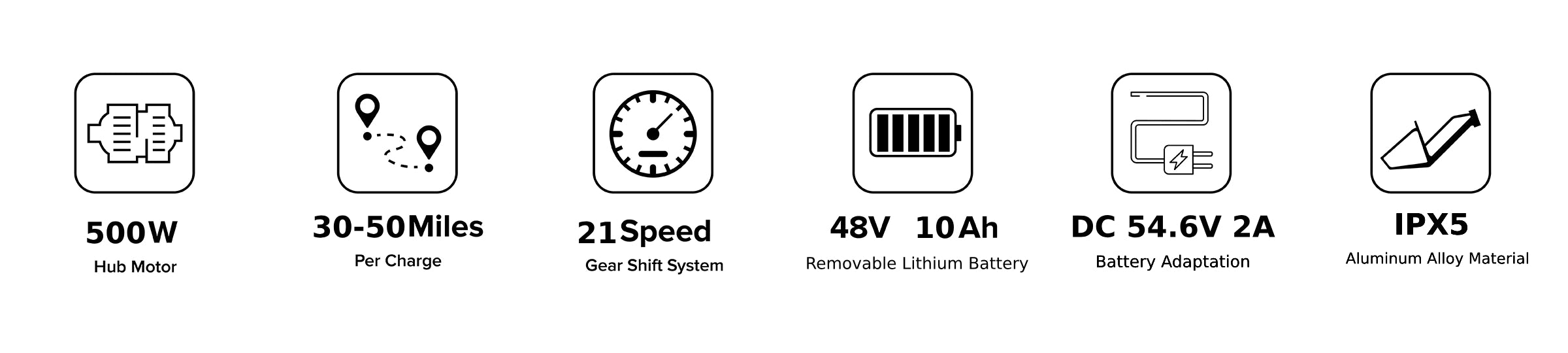

Detailed Parameter
Meet the Brawn for the most agile
ride you could ever imagine.
Aluminum alloy
500W
48V 10Ah
21-speed gears
Lockable front suspension fork
30-35miles (pure electric bike) to 55-65miles (assist bike)
5.3-6.2ft
300lbs
DC 54.6V 2A
IPX6 Waterproof
High-pressure water gun simulates heavy rain environment and stable bike operation.
Awesome and Powerful 27.5'' Electric Mountain Bike
This 27.5'' electric bike adopts 500w motor, 48V10Ah battery, lockable suspension fork and Shimano 21-speed, helping you to explore more cycling fun on city, mountain and beach roads.
Perfect your lifestyle
TotGuard 27.5" ebikes make cycling easier and help to take the strain out of riding, making cycling more accessible and a much more viable commuting option.
Meet the TotGuard for the most agileride you could ever imagine
PARAMETERS
- Power: 500W Motor
- Brakes: Dual Disc Brakes
- Maximum Range(Pure Electric): 20-35Miles
- Seat Height: 2.78ft-3.45ft, Recommend Height 5'3" - 6' with max load 300LBS
Larger 27.5" Tires for Riding with Less Effort
- Aluminum alloy material for better durability
- lockable aluminum suspension fork for less bumpy on rough roads
- Front and rear reflectors, LED Headlights and dual disc brakes for safe riding
- Sports style, streamlined matte surface, and Simple decal style built an amazing look
27.5'' Electric Bike for Adults
Front Wheel Quick Release
The front wheel quick release design makes your installation and carrying more convenient. Dual disc brake helps you ride with more confidence.

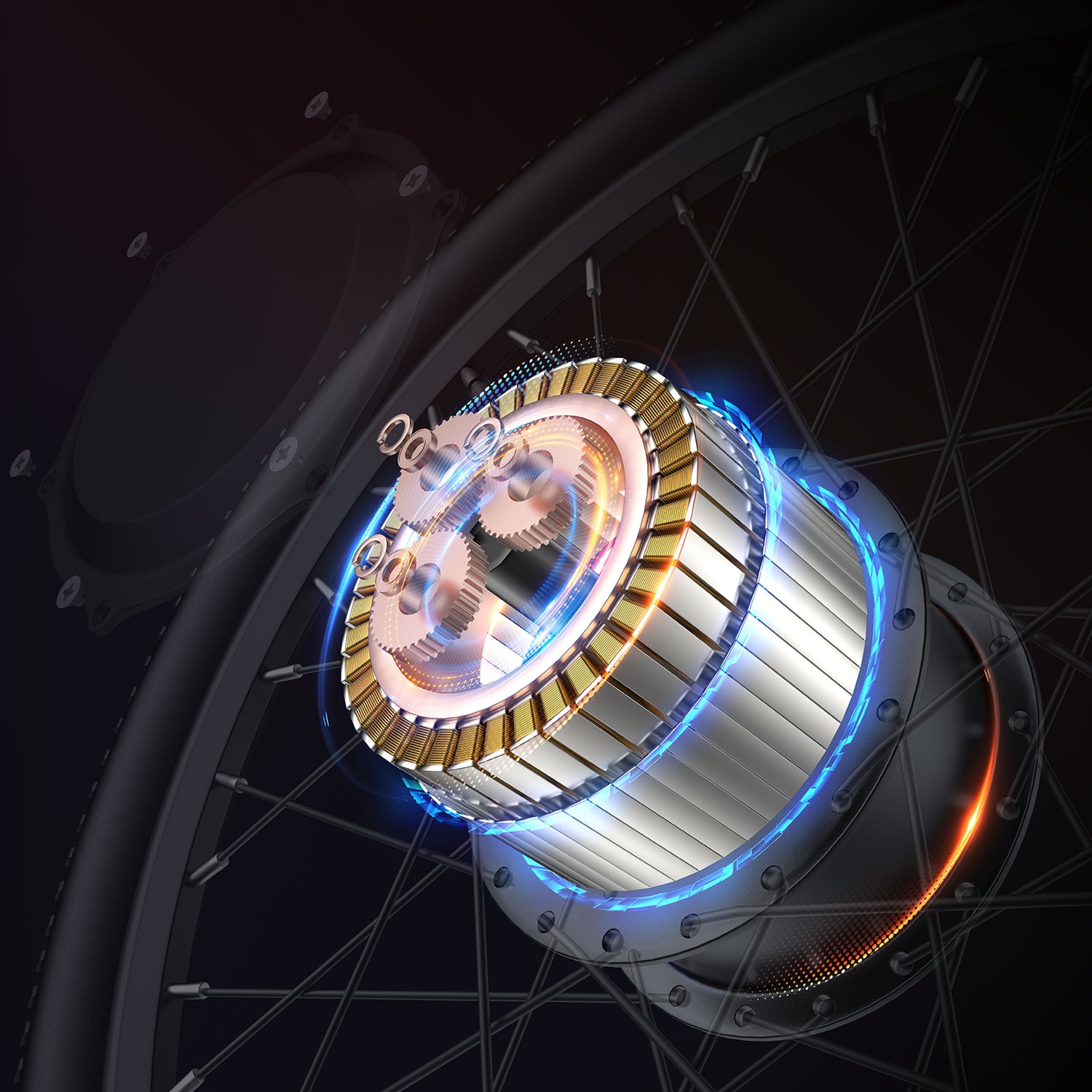

500W Powerful and Stable Motor
Equipped with 500w motor, this electric bike for adults helps you ride at a top speed of 21.6mph, allowing you to face all kinds of terrain with ease.
Professional Shimano 21-speed
This 27.5'' ebike adopts Shimano21-speed, giving you more speed options. You can change gears according to your needs to adapt to different terrains.
48V/10Ah Lithium-Ion Battery
This electric bike is powered by a 48V 10Ah removable large capacity lithium-ion battery that allows you to travel up to 65 miles in the PAS mode.
Ebike LCD Display
Clear LCD display helps you to read the real-time data easily. It can show the speed, battery power, total mileage, power assist level and more.
Adjustable Seat
The ebike saddle is ergonomically designed that can provide more comfort to your daily ride. The seat height is adjusted from 33.36'' to 41.4''.

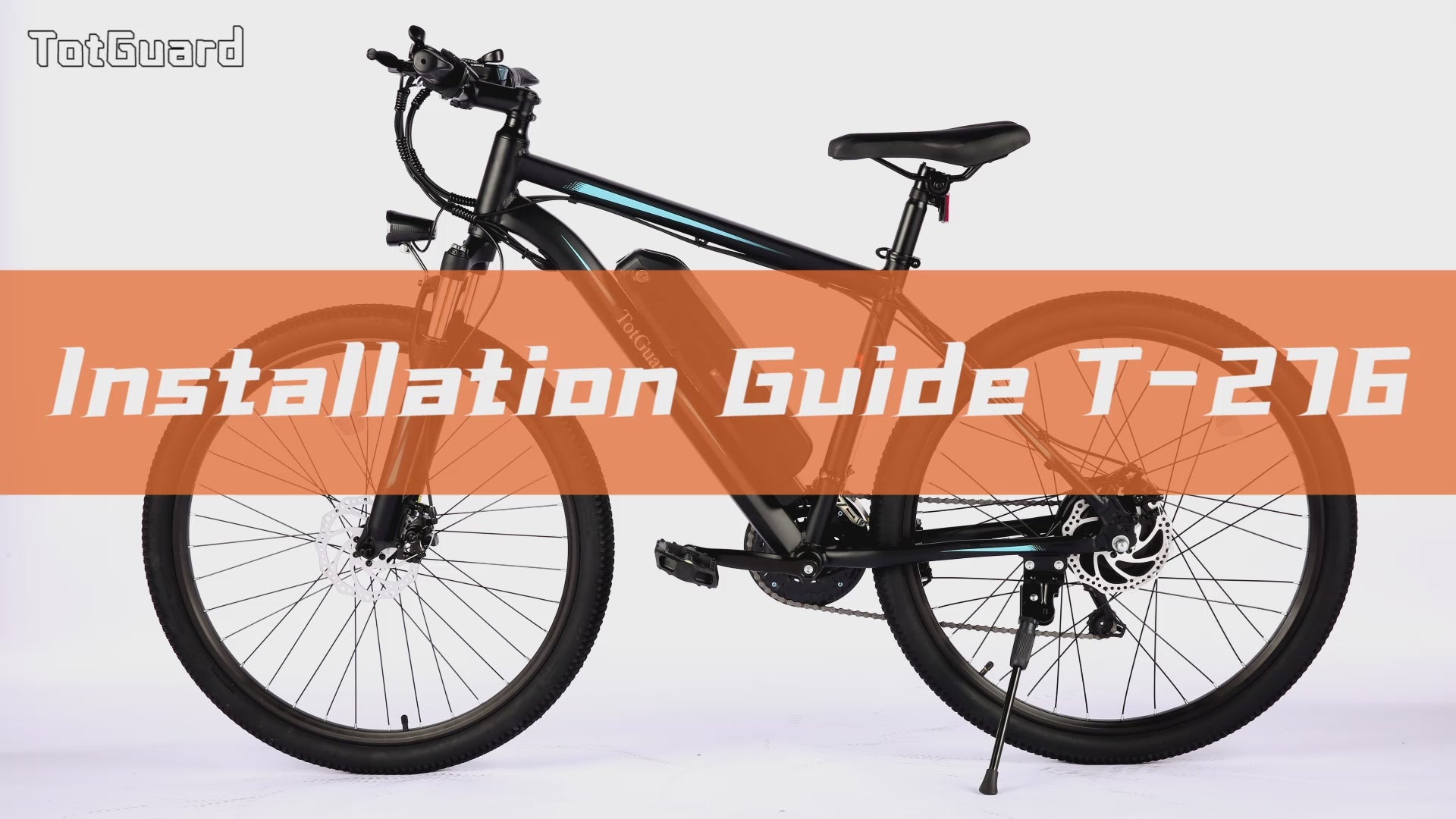

Installation Tutorial
FAQ
Do you know where I would get a handel bar extender? Is there a certain style/brand/size I would need?
Any reputable bike shop should be able to help or point you in the right direction.
If not available, search is the only other option but careful measurement for tubing dimensions will be critical.
Not all have Universal compatibility.
Is there a spec sheet that shows what the factory menu settings should be. P1-P19?
Setting Mode:
◎ When the ebike is on, press and hold + and - buttons at the same time for 3 seconds to enter the setting mode.
◎ Press once M to confirm and enter the next set.
◎ Press + or — to adjust the number.
◎ Press and hold + and — buttons at the same time for 3 seconds to quit the Setting Mode.
P01: Backlight brightnes, Level 1 is the darkest and level 3 is the brightest
P02: Mileage unit, 0 for KM;1 for MILE
P16: ODO zero setting, Long press + for 5 seconds to resume ODO to zero
Is this a class 1, 2, or 3?
This electric bike is a class 2 electric bike. Class 2 e-bikes have pedal assistance up to 21.8 Mph and throttle-only mode.
Do you have to switch modes to use throttle and pedal assist
Yes and no. When you turn on the e-bike and battery you can only pick one of 3 pedal assist modes, but you have to pick one. 6mph, 12mph or 21mph. You will always be in one of these modes while the e-bike is on. There is a throttle on right handle bar that you can use at any time, but you can only throttle up to the maximum for that pedal assist mode.
So, if you have the bike turned on and on level 1 or 6mph, you can throttle at any time but throttling will never exceed 6mph and you will be pedal assisted up to 6mph. If you have level 2 selected or 12mph, you will be pedal assisted to 12 mph while pedaling or can throttle at any time up to 12mph max. Same with level 3 and 21mph.
