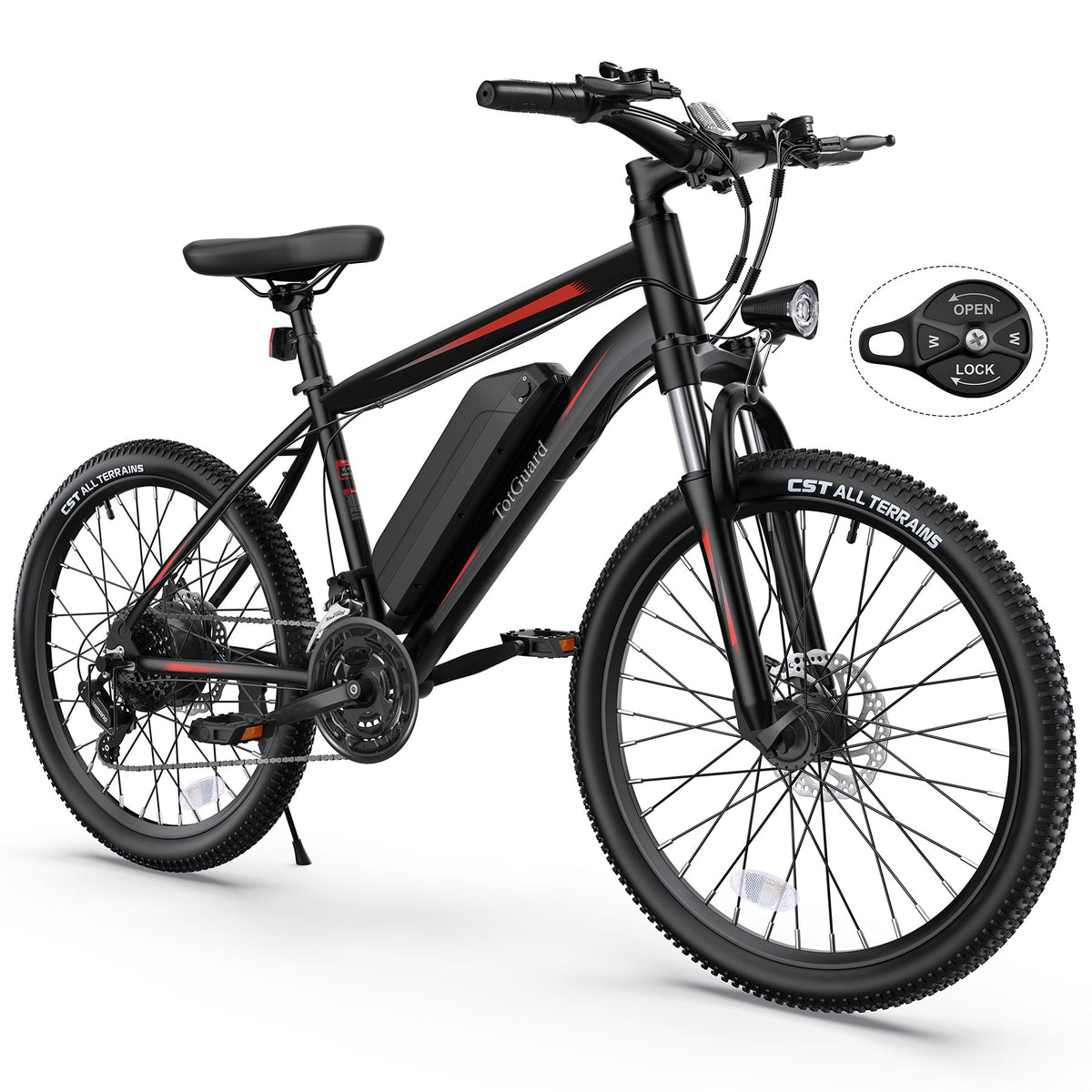

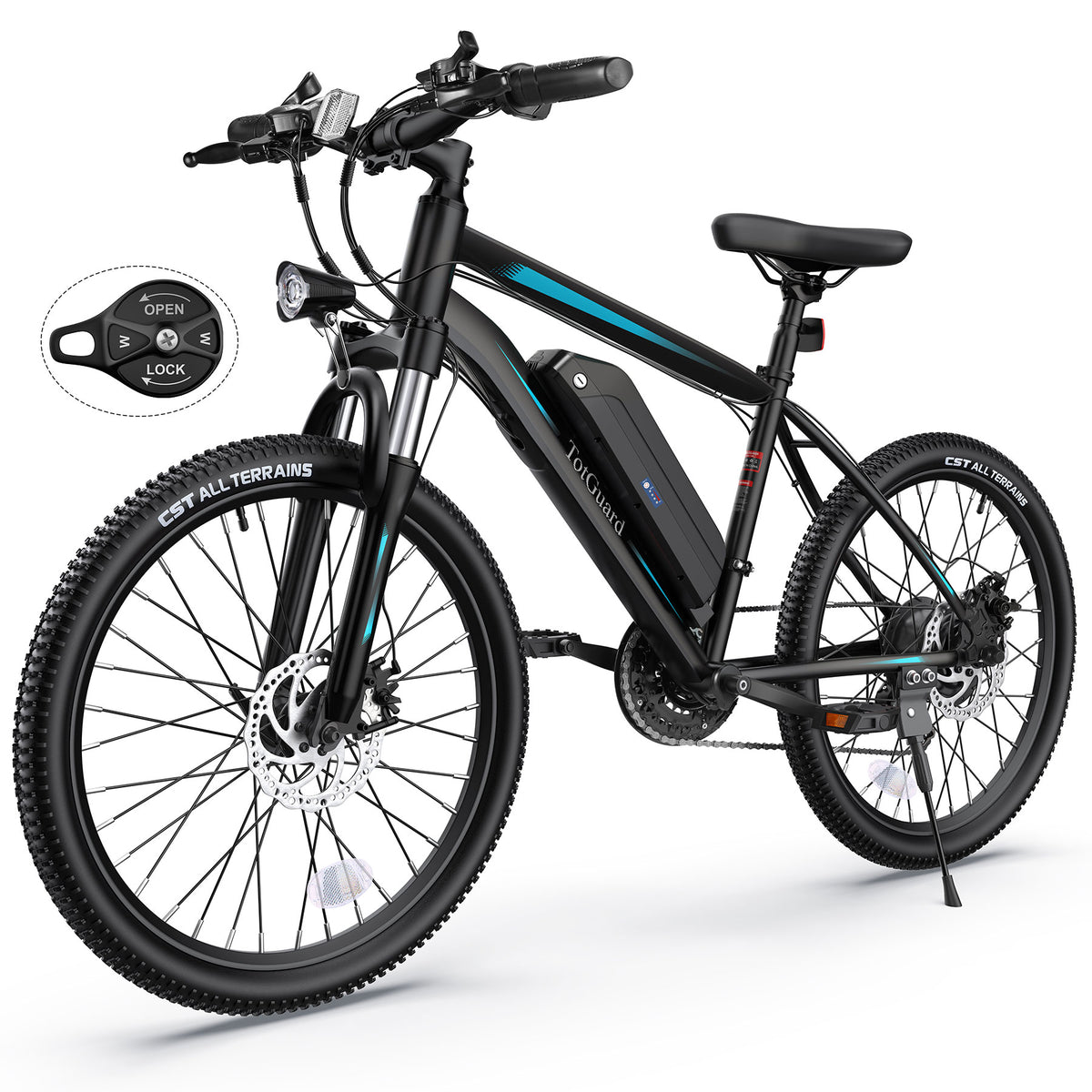

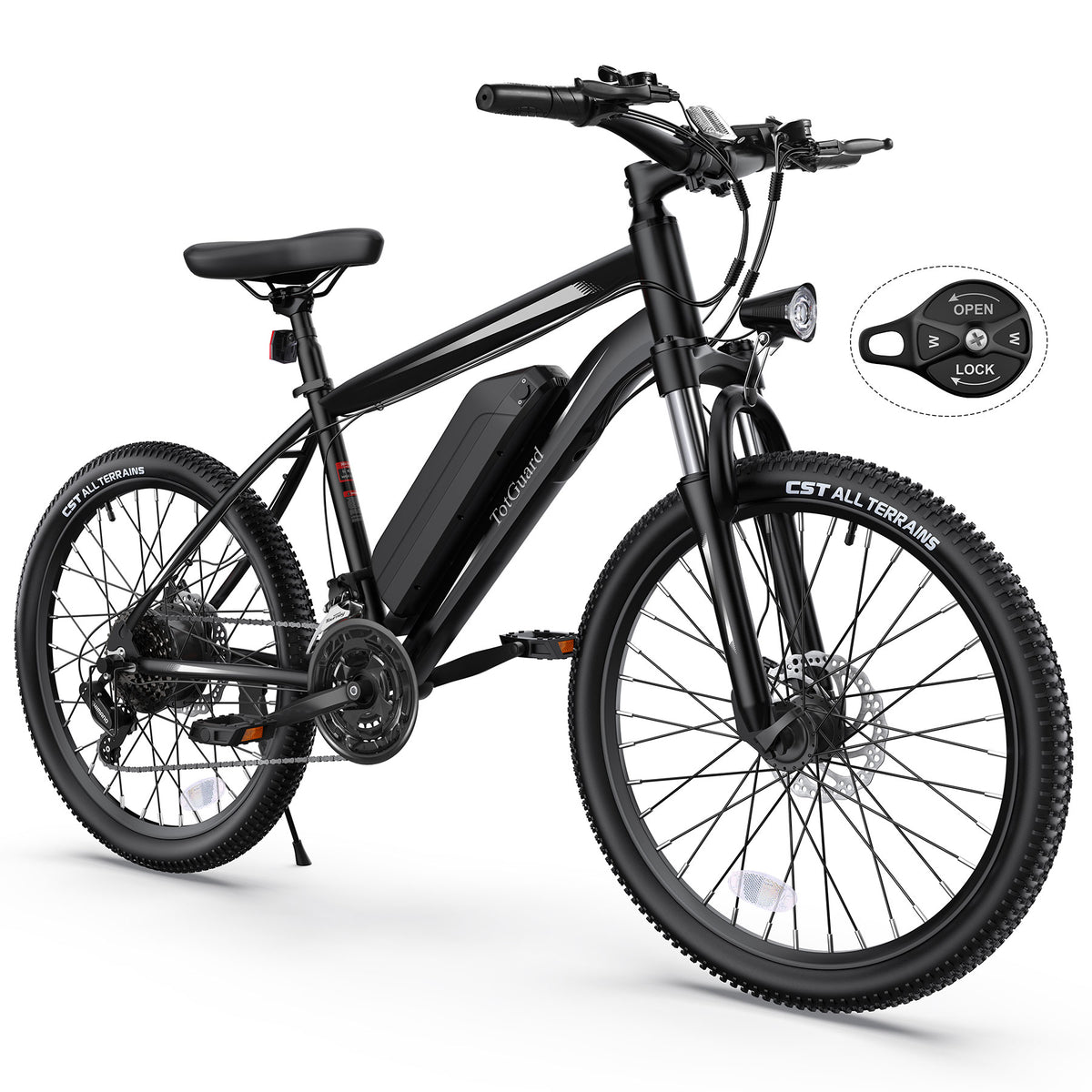

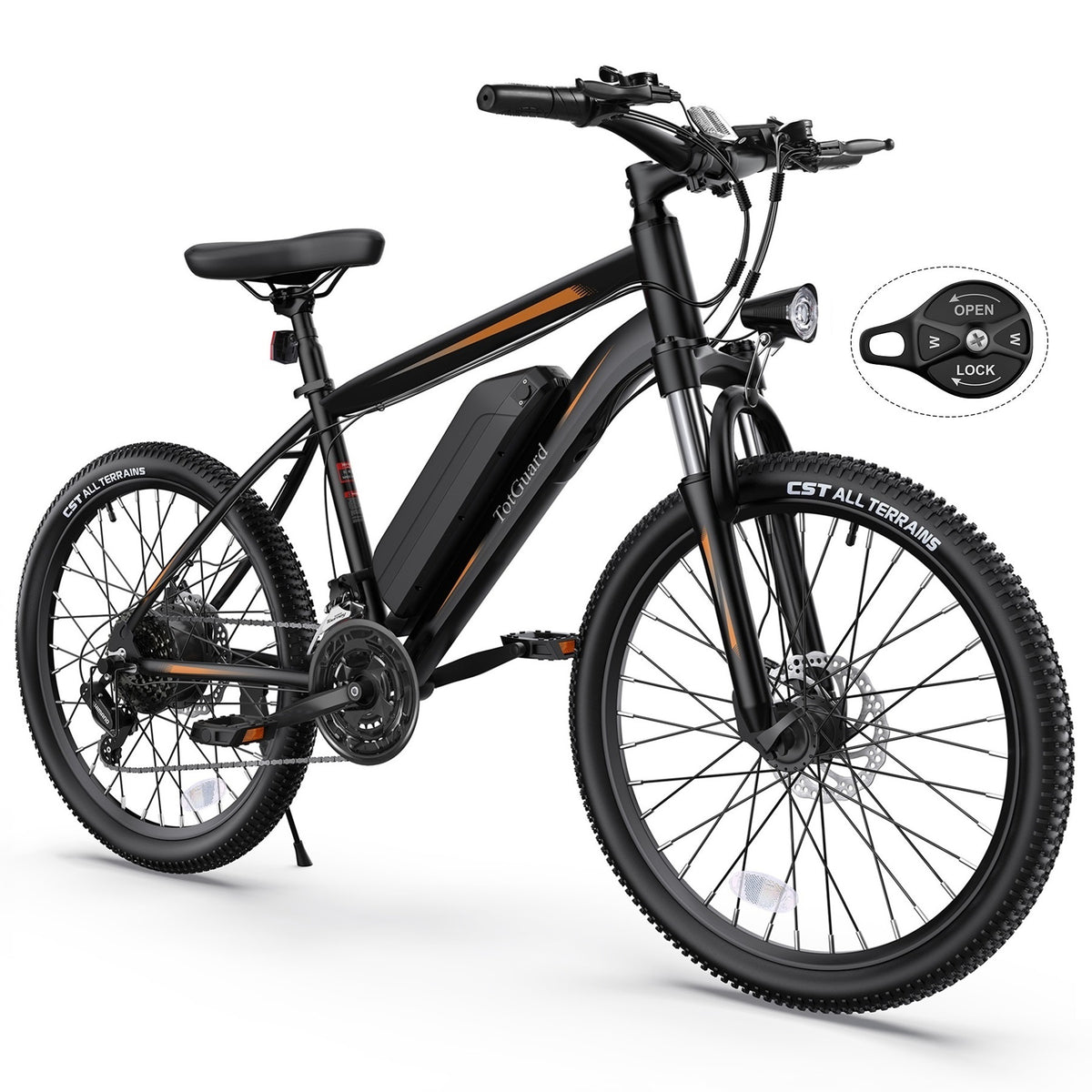

TotGuard Chaser Adult Commuter Electric Mountain Bike
- Model : Chaser
- MPN: T-026 UL
- Frame Number: AMAK00026
- Bicycle Weight: About 45lbs / 20kg
- Load Capacity: About 300lbs / 135kg
- Max Speed: 19.8mph / 32km/h
- Range: 20-30miles (Electric) to 40-50miles (Pedal)

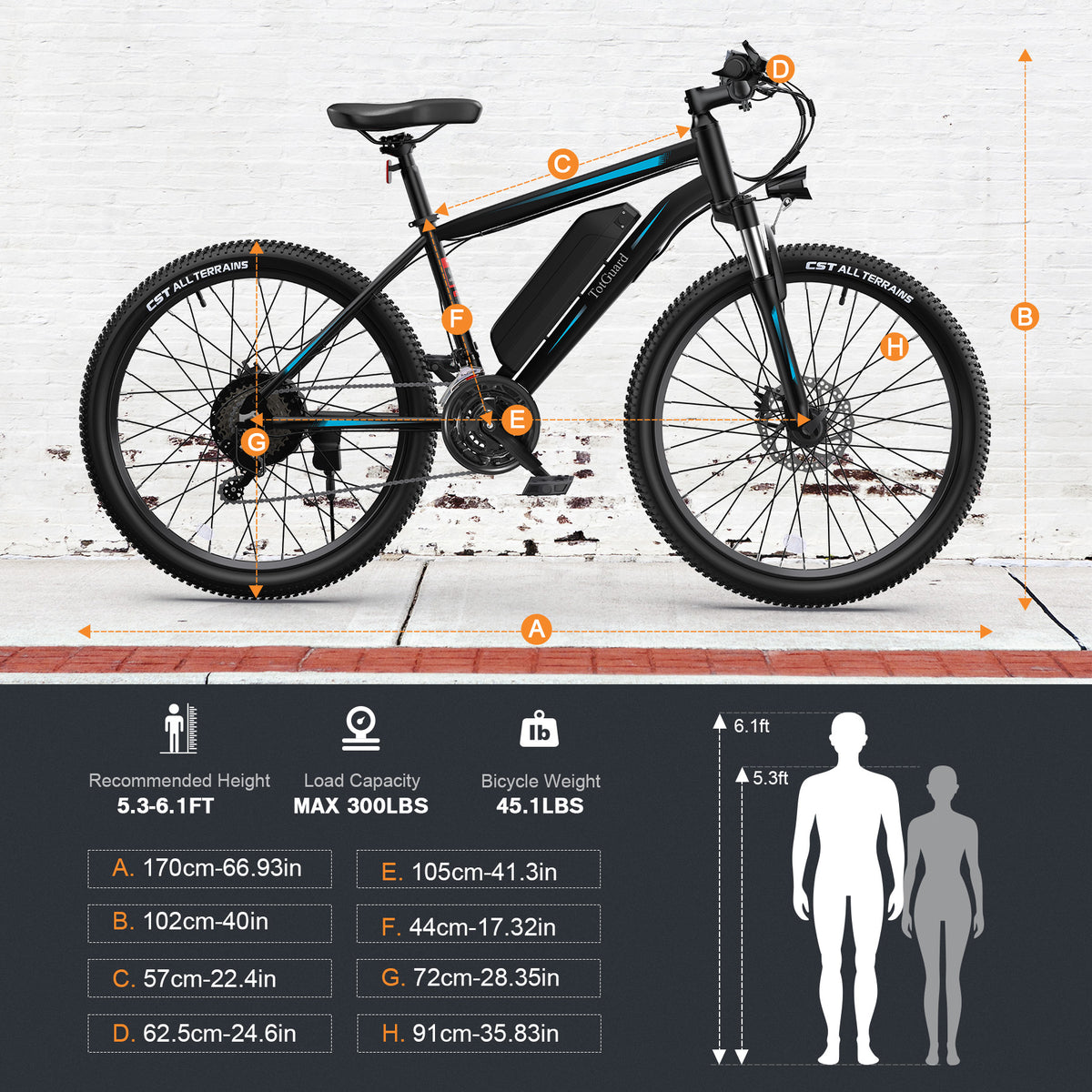

- Recommended Height: 5.3-6.1ft
- Frame: High Carbon Steel
- Motor: 500W 48V Hub Motor, 65Nm, Peak 750W
- Battery: 48V 7.8Ah 374.4Wh Lithium-ion Battery
- Charger: US Plug 54.6V 2A DC2.1mm Lithium Charger
- Controller: 48V 18A Brushless Motor Controller
- Sensor: 6 Magnet Cadence Speed Sensor
- Display: 48V P3H Intelligent Digital LCD Display
- Pedal Assist: Intelligent 3 Level Pedal Assist
- Throttle: Half Twist Throttle+Thumb Throttle
- Wiring: Waterproof Integration Cable, 1100mm
- Switch: DK21 2-in-1 switch, 1100mm, HY-3P Female
- Headlight: 48V D-018 Integrated LED Headlight
- Suspension: Lockable Front Aluminum Fork, 80mm Travel
- Headset: GH-868D Semi-Integrated Bearing Headset
- Stem: Aluminum, S-AL-018, Φ28.6×31.8×80×400mm, 10°
- Handlebar: Forged Iron, KP-S017,Φ22.2×31.8×1.4T, 620mm
- Grips: Imitation Leather Ergonomic Grips
- Brake Lever: E18DG Aluminum Brake Lever, 1100mm
- Brake: MD-M120 Double Mechanical Disc Brakes, 160mm
- Brake Pad: SA 160mm Cassette, Semi-metallic
- Shifter: Shimano SL-TX30 3x7-speed Gear System
- Derailleur: Shimano FD-TY300, RD-TY21B 6/7 Speed
- Seatpost: KP-E041, Φ31.6×350mm Carbon Steel Seatpost
- Seat Clamp: JX-07/JX-161 Φ34.9mm Aluminum Seat Clamp
- Saddle: Ergonomic Breathable Sport Saddle
- Rims: 26 x 1.95" 36H Double Wall Aluminum Rims

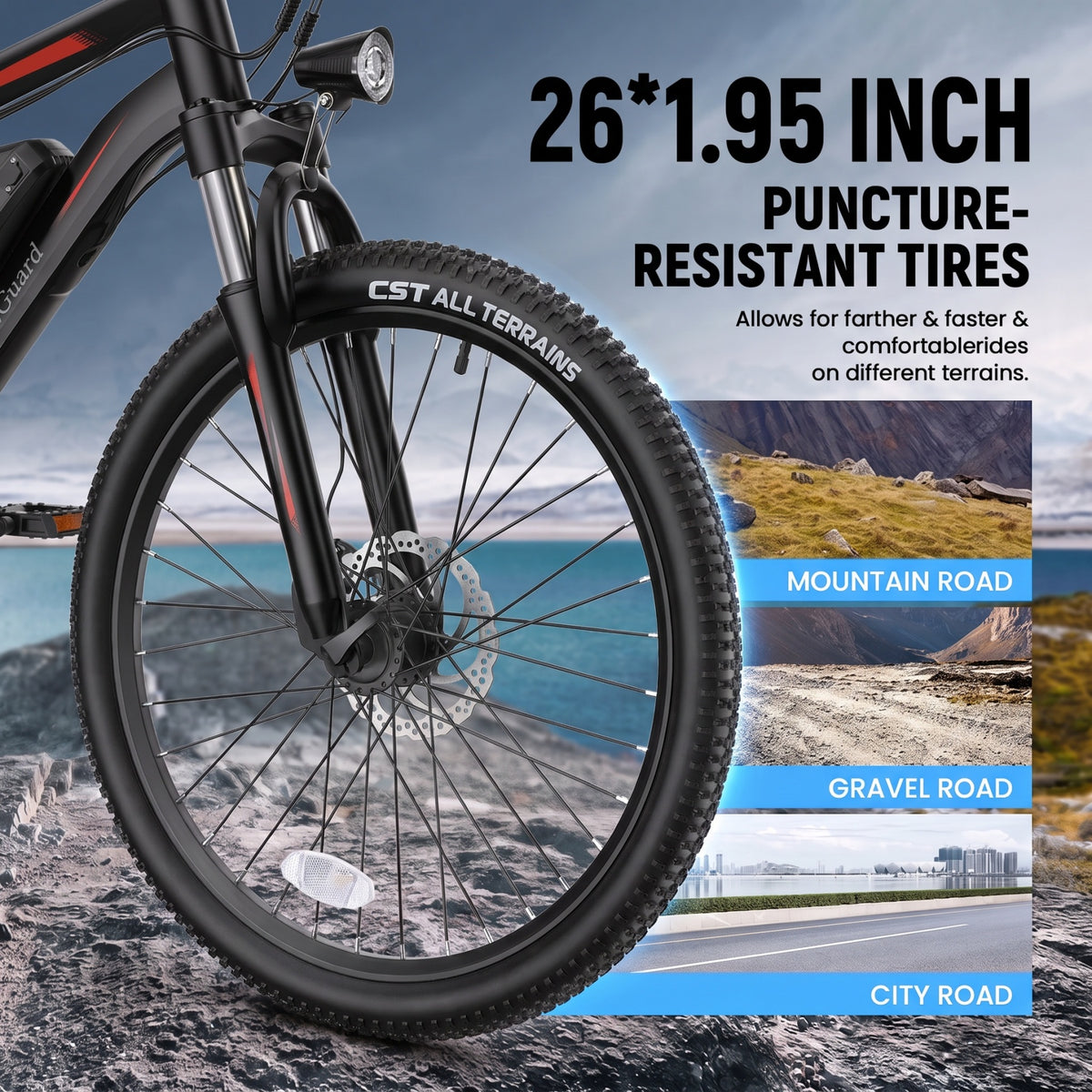

- Tires: 26 x 1.95" Wire 30TPI Anti Puncture Tires
- Spokes: Front & Rear 14G, 13G Black Carbon Steel
- Freewheel: XD-FW-717, 7-Speed, 14-28T
- Crank Set: 42T Chainring, 170mm Crank, Forged Alloy
- Bottom Bracket: 68x118mm Integrated Bottom Bracket
- Chain: KMC HV500 Aluminum Alloy Chain, 108 links
- Pedal: FP-853 Standard 9/16" Integrated PP Pedal
- Kickstand: HB-19A ED Forged Iron Kickstand, 275mm
- Reflector: Front & Rear CPSC/BS Quick Release Reflectors
- Fender: Optional
- Package Weight: About 58lbs/26.5kg
- Package Dimensions: 54 x 26 x 9.8 inches
We have a 30 days return policy. If you are unhappy with your purchase, as long as you contact us within 30 days from the receipt of the item, we will process your return/exchange request. Any request after 30 days will not be honored. Please make sure to contact us by email: service@totguardebike.com at first.
The Totguard electric bike with 1 year warranty service for the frame, battery, motor and other main replaceable parts. If you have any questions or need warranty support, please contact us at service@totguardebike.com.
- E-bike*1
- Front wheel*1
- Saddle assembly*1
- Charger*1
- Battery*1
- Front wheel QR(Quick Realease）*1
- Rear relector*1
- Front reflector*1
- Tool*1
- Pedals*2
Why Choose TotGuard Chaser?
An electric bike with reliable quality and stable ride.
- Classic Diamond Frame: Diamond high carbon steel frame, stable, strong and durable. Classic frame design, available in a variety of colors.
- Powerful Motor and Large Capacity Battery: goes a top speed 19.8mph and lasts about 25-50 miles.
- Front Lockable Suspension Fork: Can effectively handle bumps, rocks and uneven terrain to ensure a smooth ride.
- Adjustable Seat: allows you to easily raise and lower the seat position according to your height.
Adaptable to Complex Terrain

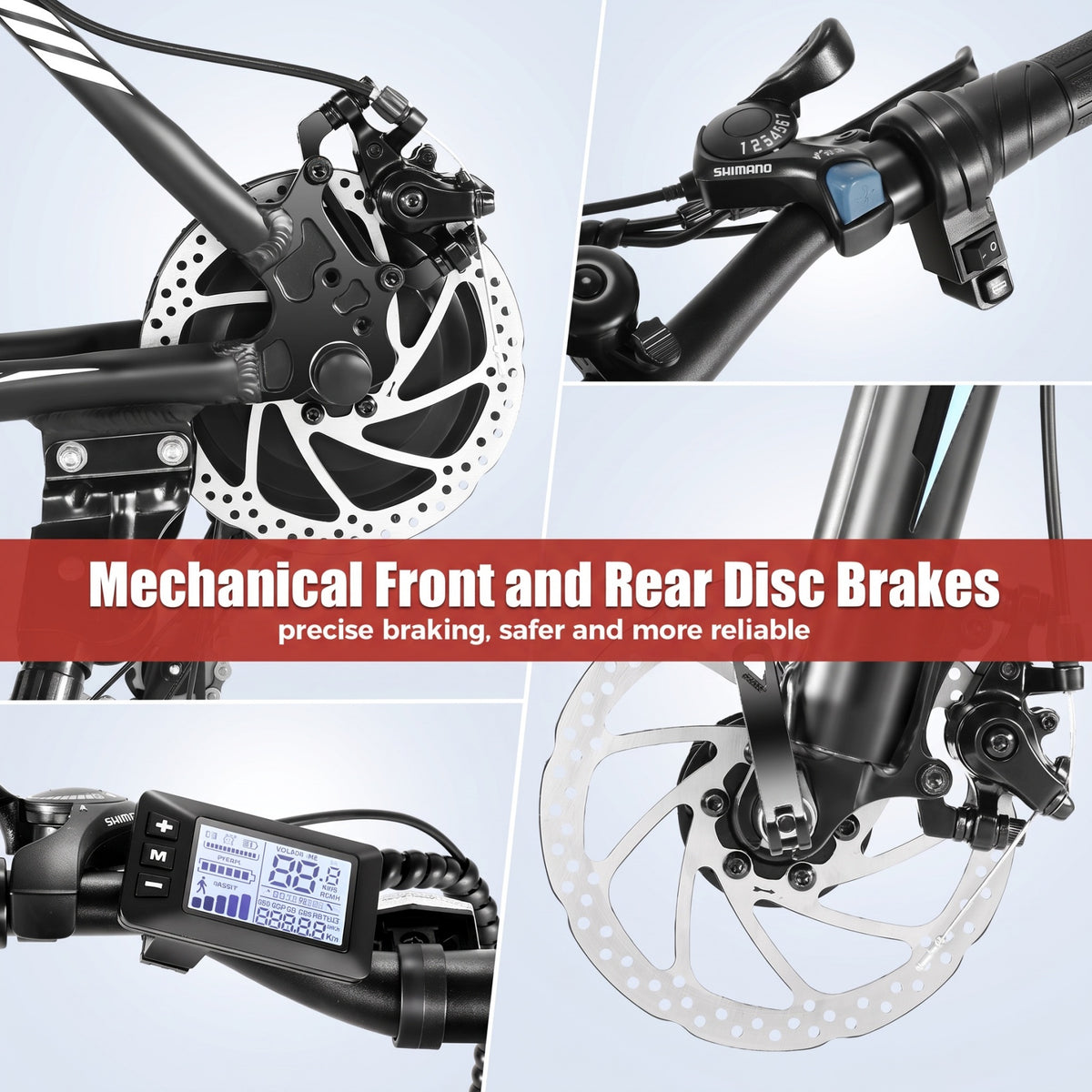

- Dual Mechanical Disc Brakes: ensures your riding experience more reliable and smooth.
- Quick Release for Front Wheel: help you easily to disassemble/set up the ebike and carry it anywhere with ease.
- 3 Different Speed Modes - mode 1 (~6mph), mode 2 (~12.4mph), mode 3 (~19.8mph). You can press the “+”or“-”buttons on LCD display to choose three different power options to meet your speed needs.
- Recomended Uses: explore new mountain routes, enjoy weekend joy rides, engage in workout and commute to work.
4 Working Modes for Your Option
- Normal Bike Mode: ride it like a common bike, allowing you to do exercise.
- Pedal Assisted Mode: Pedal to maintain speed without using throttle. Choose 1-3 PAS (Pedal Assistance) according to your needs.
- Pure Electric Mode: twist the throttle on the right handlebar to power your ride.
- Booster Mode: Press the ”—“ button untill the display shows “P", then the ebike will move at a speed of 3.73miles/h (6km/h), based on different road conditions. This mode can be turned off by the brakes.
26" Electric Bike for Adults

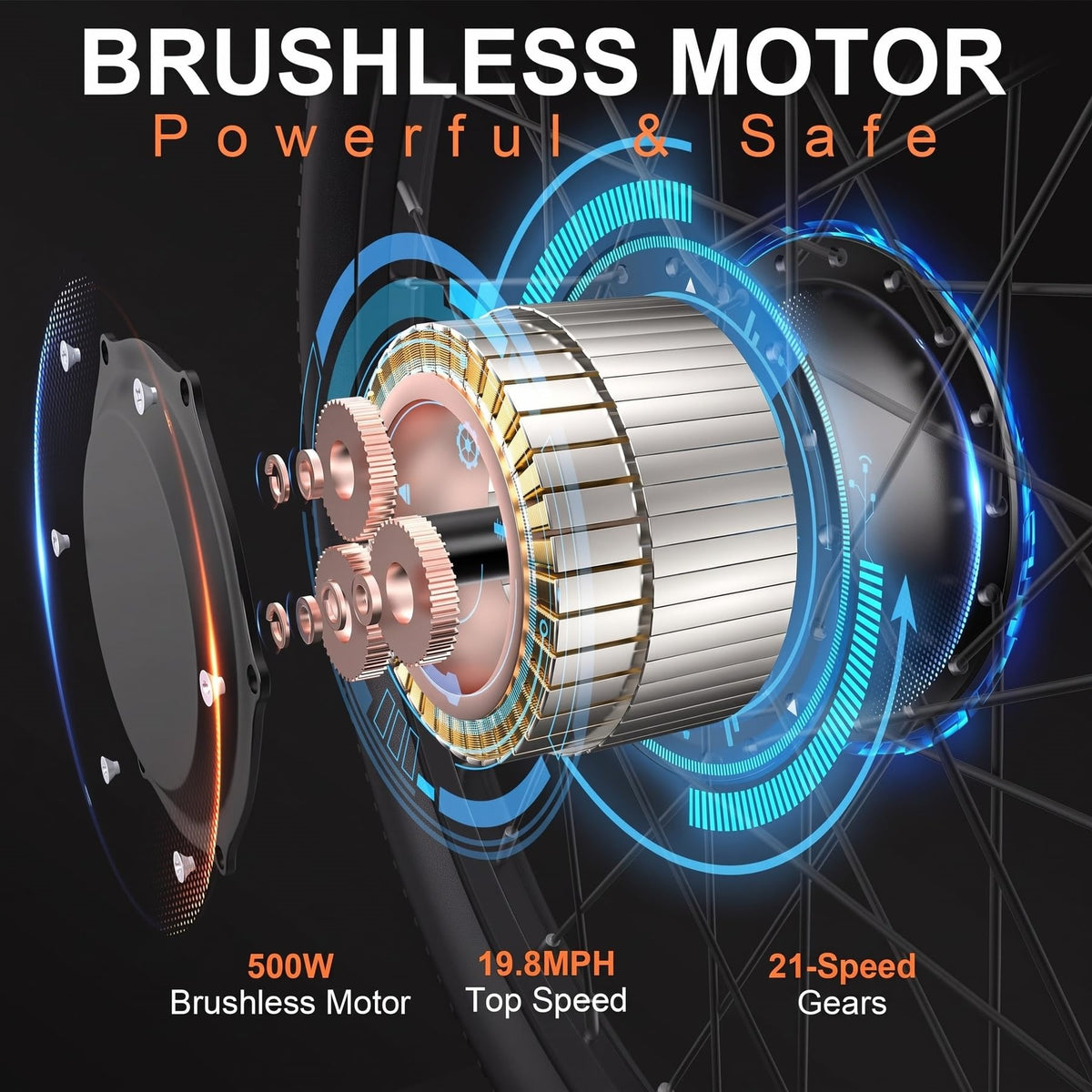

500W Powerful Motor
The electric bike is equipped with 500W powerful motor, with a top speed of 19.8mph, which can help you ride on rough roads with ease. It's suitable for your daily commute and exercise.

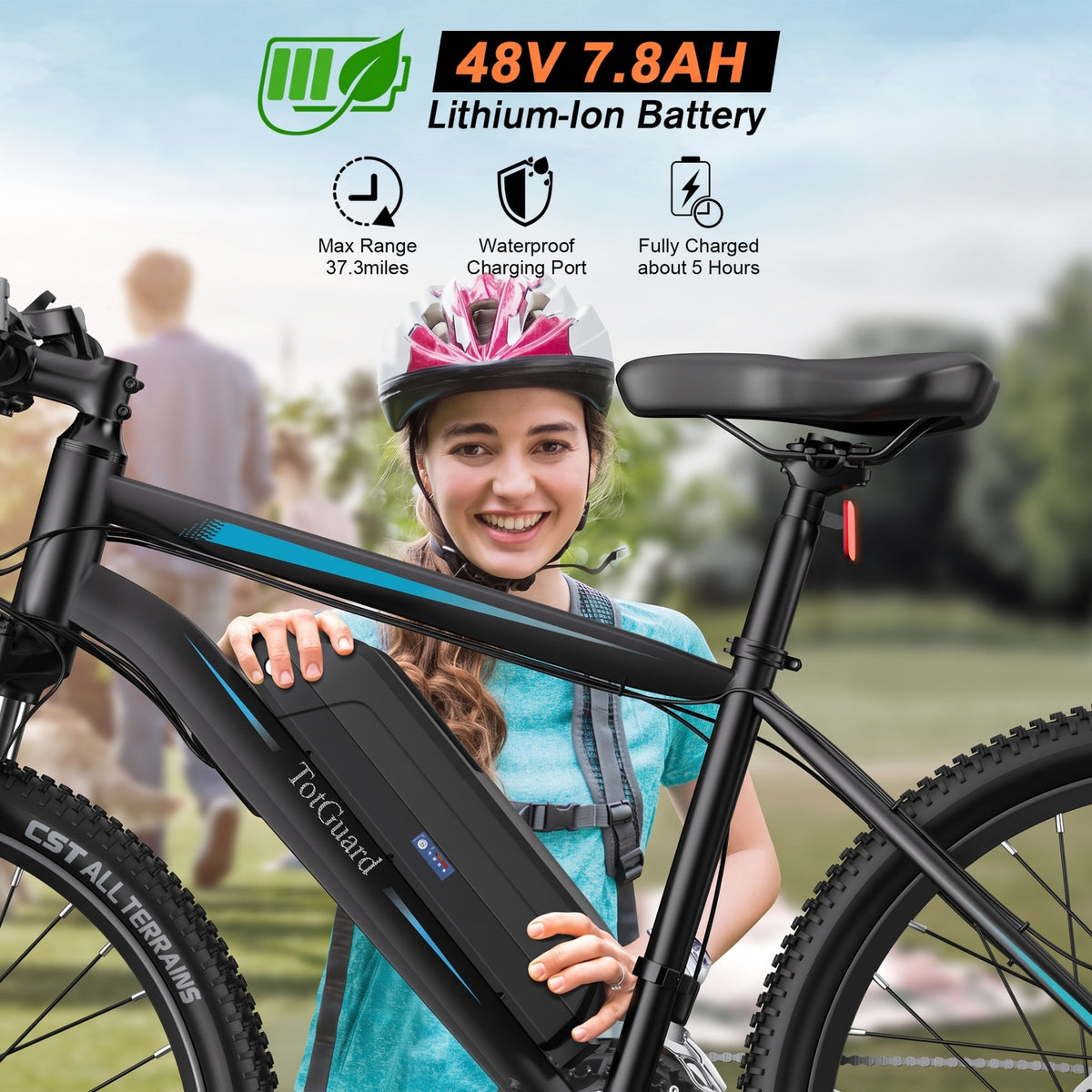

374WH Removable Battery
This ebike has a 48V 374.4Wh IPX5 waterproof battery with key lock attached to its frame. You can charge the battery on or off the ebike by your convenience.

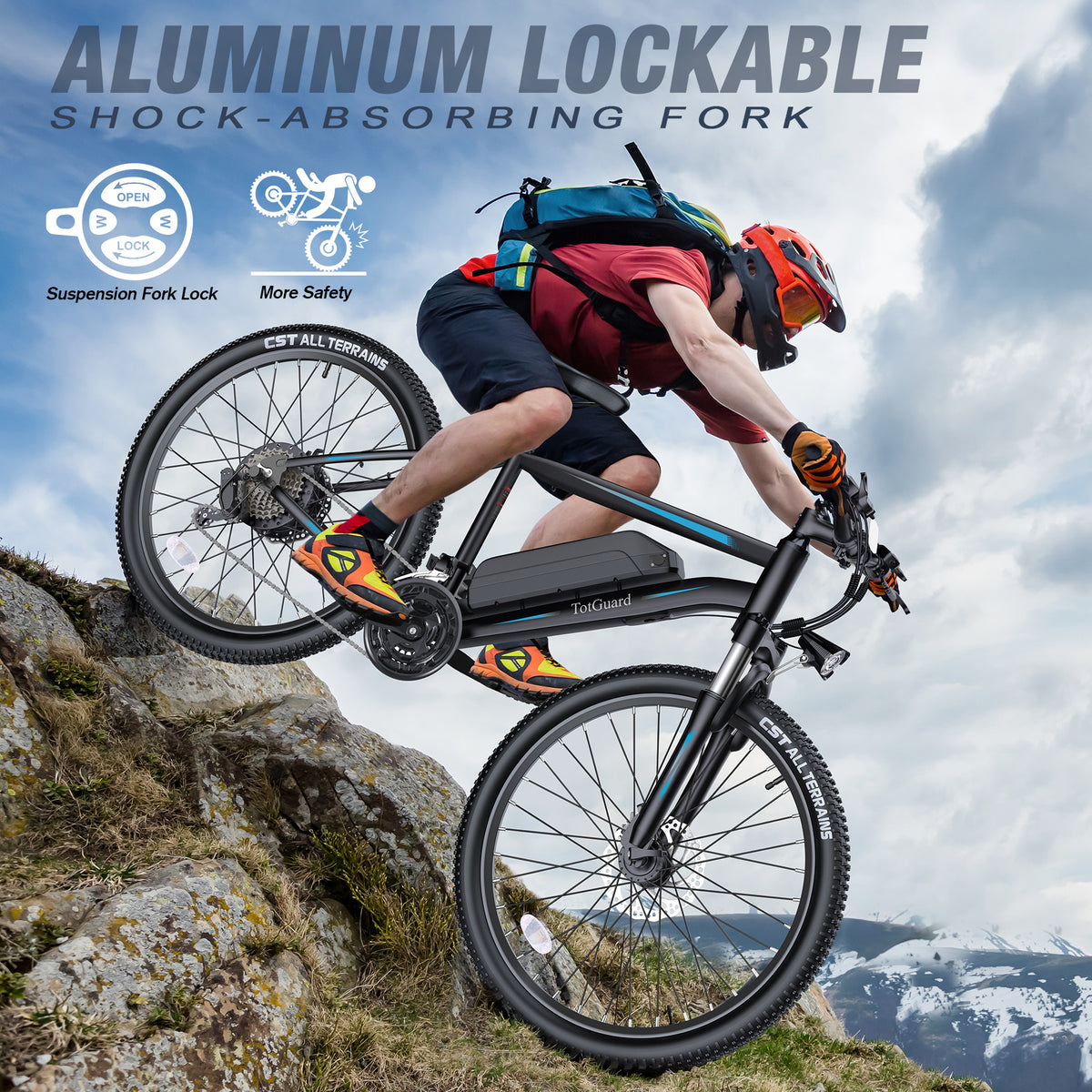

Lockable Suspension Fork
The lockable suspension fork can absorb vibration efficiently, providing a more comfortable riding experience on rough roads.

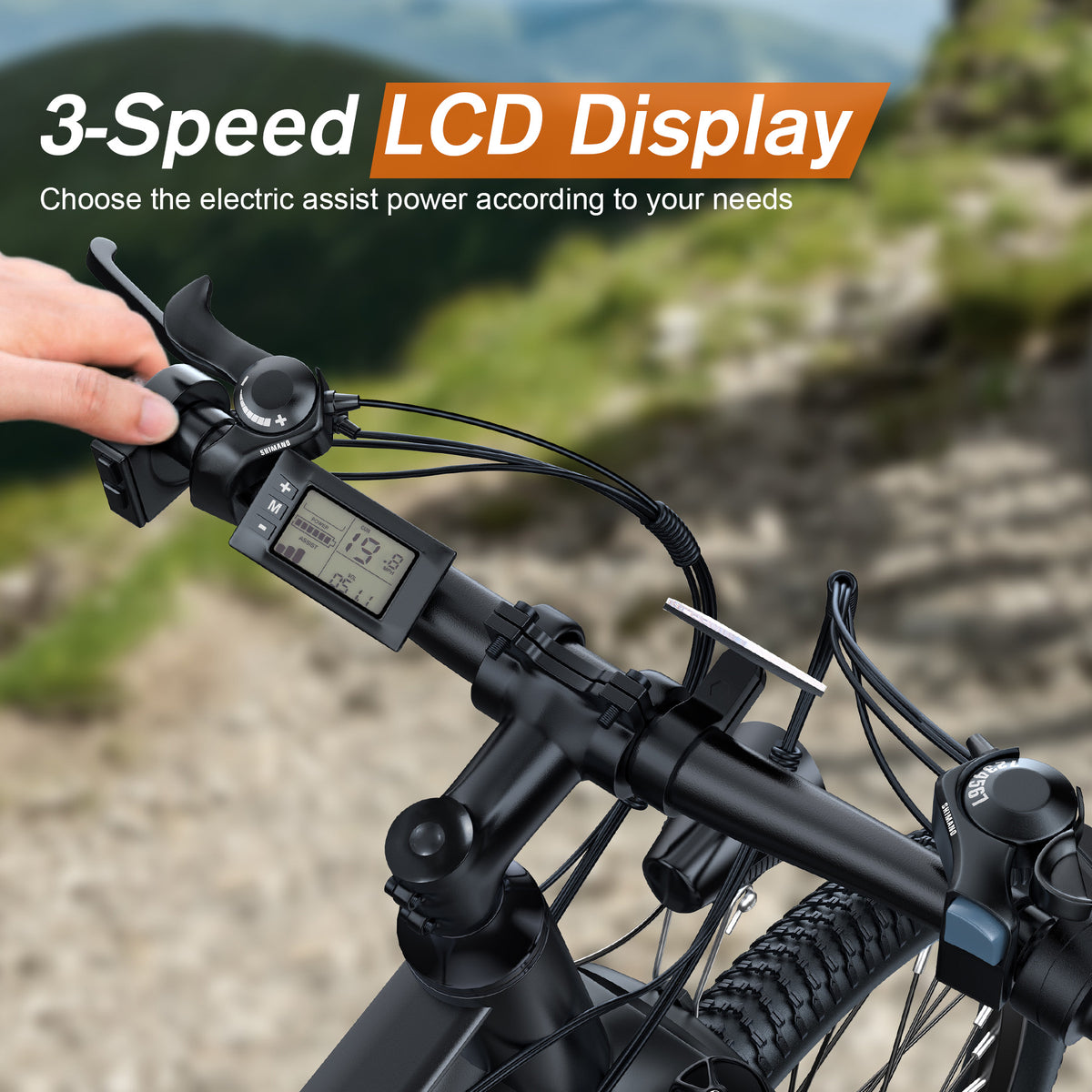

Intelligent LCD Display
The intelligent LCD display shows real-time speed, battery power, pedal assist level, mileage and more. Long press the M button for about 3-5 seconds to turn on the display.

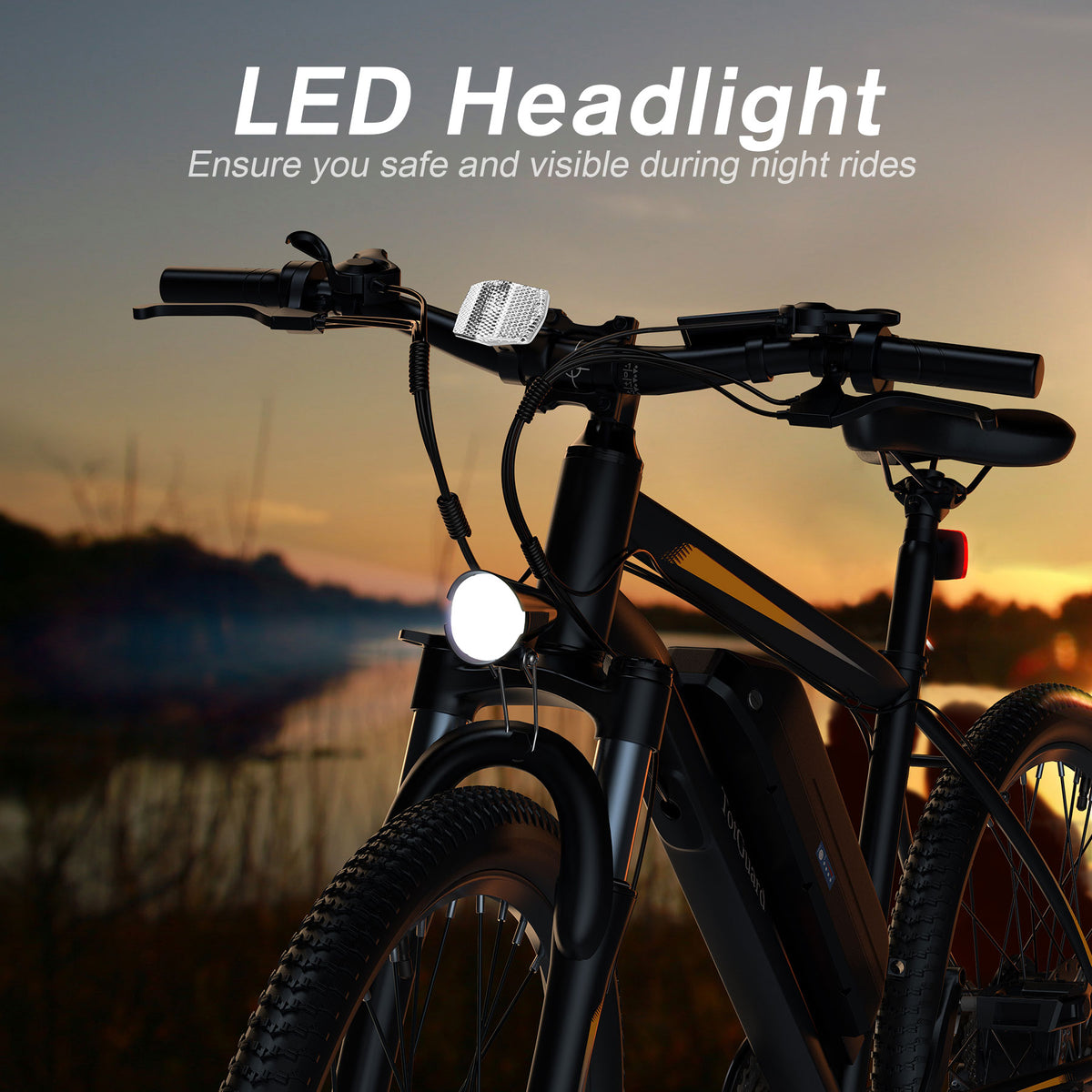

Integrated LED Headlight
This electric mountain bike also has an integrated LED headlight, making you visible and safe when riding in the evening.
Shimano 21-speed Gears
Professional Shimano 21-speed gears gives you more speed options, which can meet your uphill and downhill, slow, speed down and speed up.
Explore More Routes and Enjoy More Fun
This adult electric bike is equipped with a 500W motor, which is powerful enough to help you handle hills and headwinds easily. The 48V 374.4Wh removable lithium-ion battery can reach a top speed of 19.8mph, allowing you to enjoy a long-lasting riding journey. The unique lockable suspension fork provides more comfort when riding on rough terrain. 4 riding modes help you explore more routes. It is suitable for riding on mountains, sand and urban roads, allowing you to ride more freely.
FAQ
Does it come together？
90% pre-assembled. It is not difficult to finish the rest. You can refer to the video on the product page.
Does this ebike has a Horn?
Yes, this e bike has bottons for horn，accessible under the display. It is really easy to control while riding.
What tires will fit it?
The size 26 x 1.95" wire 30-40TPI anti puncture tires.
