TotGuard Pioneer All Terrain Folding Fat Tire Electric Bike
Specifications
- Model：T-268
- Item：26 inch Fat Tire
- Folded Size：3.45ft*2.3ft*3.28ft（L*W*H）
- E Bike Weight：66Pounds
- Max Load：300lbs
- Max Speed：21.6mph
- Battery Adaptation：DC 54.6V 2A
- Battery：48V 10Ah
- Pedal-Assist Mode：Max 60 miles
- Pure Electric Mode：Max 28-30miles
- Max Angle of Climb：30degrees
- Charging Time：Around 5 hours
- Tire Pressure：30PSI
- Frame Material：Aluminum Alloy
- Dashboard：LCD Display
- Drive Type：Rear Drive
- Brake Type：Mechanic Disc Brakes
- Chain set：24-34-42 Tooth
- Gears：21S
- Chain：KMC Z7 RB
- Motor：High speed 500W motor
- Tire Size：26inch*4inch
30 Days Return
If you are unhappy with your purchase, as long as you contact us within 30 days from the receipt of the item, we will process your return/exchange request. Any request after 30 days will not be honored. Please make sure to contact us by email at first.
1 Year Warranty
The Totguard electric bike with 1 year warranty service for the frame, battery, motor and other main replaceable parts. If you have any questions or need warranty support, please contact us at service@totguardebike.com.
What's in the Box?
- E-bike*1
- Front wheel*1
- Saddle assembly*1
- Charger*1
- Battery*1
- Pedals*1
- Rearreflector*1
- Front reflector*1
- Tool*2
Amazing Three Riding Modes
- Electric Bike Mode: Twist the throttle to get power during the ride.
- Pedal Assisted Bicycle: Turn on the battery and display, then pedal without using the throttle.
- Normal Bike: Only use pedals without turning on the battery or display.
- You can choose different riding modes for your commuting, camping and exercising.
Fun to Ride, Easy to Handle
- Regular Bicycle Mode: Ride the bike without powering on, fun way to get exercise.
- Pedal Assist (PAS) Mode: The motor will assist you with power as you pedal the bike.
- Throttle/Ebike Mode: Twist the throttle to power your ride,without padalling.
Fast, Fun, Great around Anywhere.
- 3 Different Speed Modes: mode 1 (6.4mph), mode 2 (12.8mph), mode 3 (21.6mph). Press the LCD display "+"or"-" buttons to choose three power options.
- The places the TotGuard 26" fat tire electric bike can take you are almost limitless: unpaved rail trails, rocky roads, sandy beaches, snowy suburbs, and even urban jungles.
Customers Say
- I do a lot of hunting. I’m 6’2” and 200lbs. Battery life is great, the bike folds for easy transport, and it was easy to assemble as it came with everything you need to do so. 10/10 e-bike for the price.
- The vehicle is totally amazing, sturdy construction, battery last as advertise and smooth ride.
- We got this electric bike to use for trips to the gas station down the road and possibly for my daughter to ride to school. We would buy this again.
- Great Value and gets a ton of attention- Looks Great!
More E-bike Details
Powerful Battery & Motor
- 48V 10Ah Removable Lithium Battery, IPX5 waterproof
- Charging Time: about 5 hours
- 500W Motor, 21.6MPH top speed
Intelligent LCD Display
- It gives you the data support like battery life,mileage, speed, PAS.
- Press "+" or "-" to adjust assit levels
- Long press "M" to switch on/off the E-bike
Comfy Wide Seat&Shock Absorber
- Adustable Seat Height: 2.96ft-3.61ft
- Hydraulic Dual Shock Absorber (Locable suspension fork+seat suspension post): offers you with a smooth ride.
Well Made and Easy to Assemble!
- 85% pre-assembled ebike for adults. Assembly video & user manual are on the product page for your check.
- If there is a damage/failure when you receive the ebike, please send us the relevant photos/videos. Our technical staff will help you to solve problem.
- Please inflate the tires for the first ride and wear a helmet during riding for your safty.
- The riding range also depends on battery life, rider's weight, road condition, riding style,etc.
Full-throttle, Fat-tire Fun!
- When you are charging, the battery indicator will not turn on.
- After fully charged, the charger will turn green, unplug the charger, and twist the key below the battery and long press M to turn on the ebike. Please be aware of unplugging the charger when you want to check the battery indicator.
- Long press "M" on the dashboard to start the electric bike.
Find Your Ebike in Our Store
26“
20“
500W
500W
48V 10Ah
48V 10Ah
Front & Seat
Front & Seat
330 lbs
330 lbs
5'10"-6'10" ft
5.4-6.4 ft
Comfortable and Softer Seat
This seat you can adjust to the height you want according to your habits. Makes your ride more comfortable7The recommended height for this 26''fat tire electric bike is 5.5-6.7FT.
Hydraulic Shock Absorption
Whether you're on rough hills or snow, the hydraulic damping is great for easing the bumps and making your ride less tiring
LED Headlight
When you're riding at night or deep in the mountains, turn on the bright headlights to make you safer
NOTE:When riding at night, please turn on the Led headlight to make you safer.
Clear Display
The clear display shows not only the battery level、using time ， but also the real-time speed and 3 assist levels.You can monitor the data of your ride at any time and make appropriate adjustments

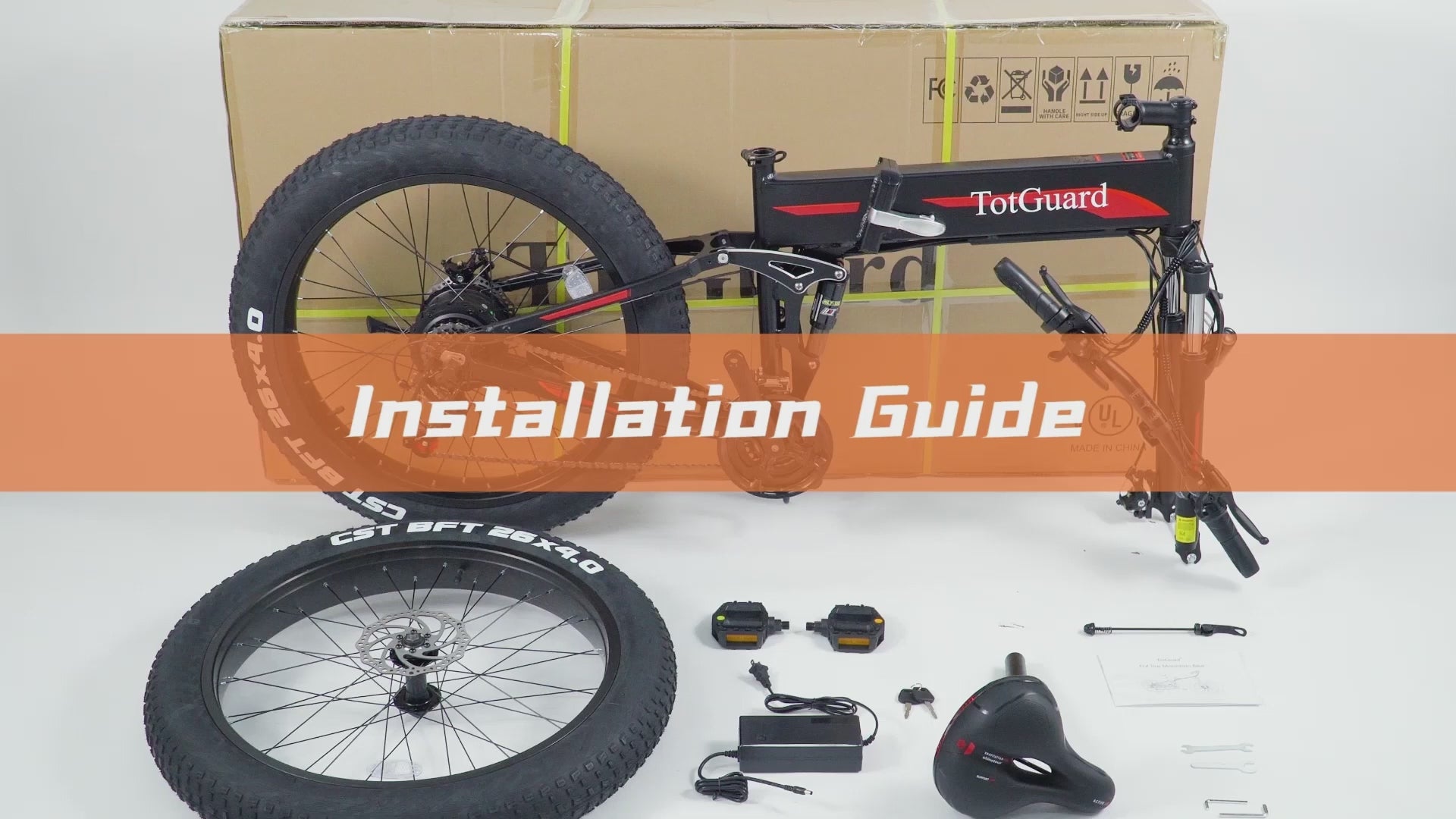

Installation Tutorial
FAQ
is there a way to ride the bike normal and only use the throttle when needed?
There are three ways of riding: e-bike mode, electric-assist mode, and normal bike mode, which can meet our different riding needs.
What is the torque in the climbing Degree
This electric bike has a motor torque of 65NM and can easily go downhill on a 30-degree ground.
Bikes usually show frame size in their specs, - this one does not, what is the frame size, is it 18 or 20 or ??
This fat tire electric bike : vehicle size: 64*198*113CM, seat cushion 94-110CM.
Any issue ordering from non amazon vendors? Im sure there are none. Just asking.
We and Amazon have the same price. However, Amazon has high shipping and tax fees. Buying on the official website is free of shipping and tax, and you can use different discounts to buy, which is more favorable for actual purchases! At the same time, there is direct customer service intervention, and after-sales service is more convenient!
What is the controller rated at ? Is the battery 48v/10ah or48v/10a ?
The rated power of the controller is 48V and the rated current is 18Ah. The matching meter is a 5-level pedal assist meter.
